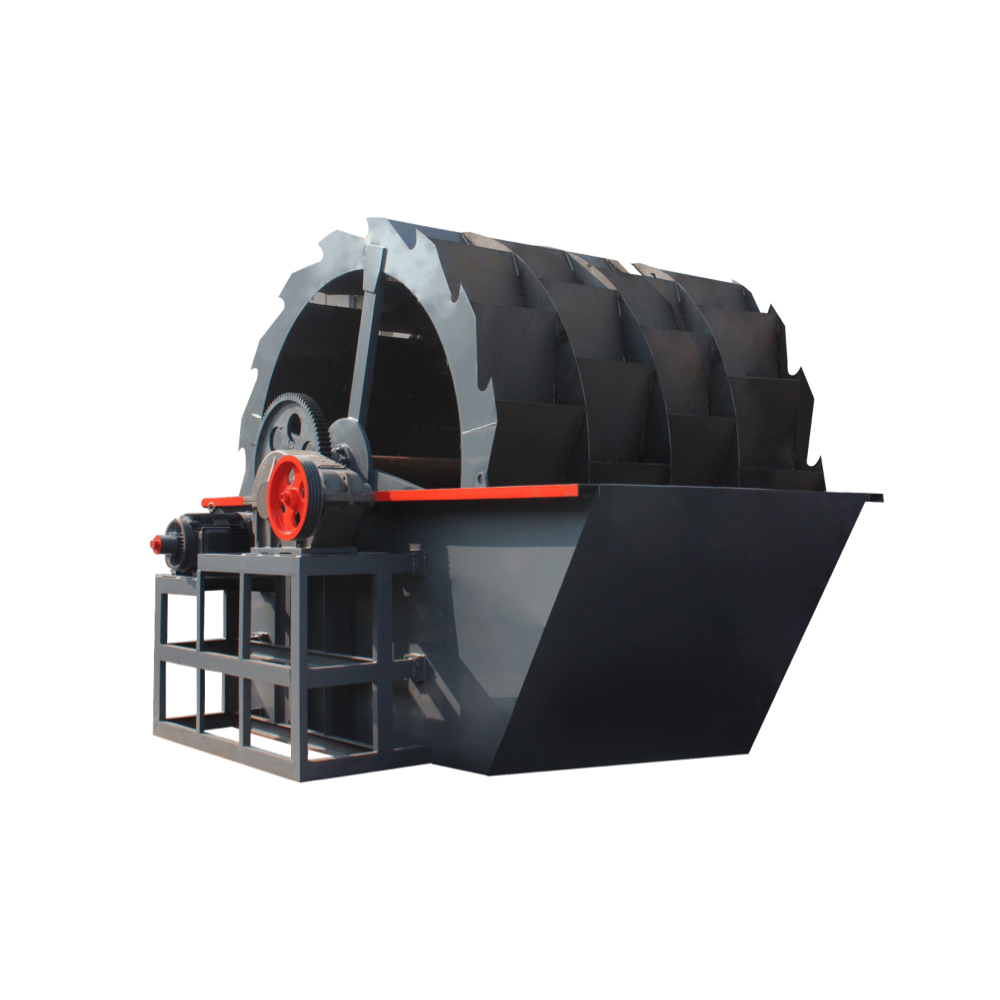

Bucket Wheel Sand Washer

1. Optimized Structure & Low Maintenance:

   • Modular design allows quick replacement of wear parts (e.g., blades, seals) within 1-2 hours.

   • Centralized lubrication system reduces servicing frequency by 30%.

2. High Efficiency & Energy Savings:

   • Processing capacity: 50-300 t/h (adjustable via weir plate positioning).

   • Power consumption: 15-55 kW (30% lower than screw-type counterparts).

   • Cleaning efficiency: ≤3% residual mud content (tested per ISO 13503-2).

3. Advanced Engineering:

   • Fully enclosed oil-bath transmission: IP68-rated protection against water and dust ingress, extending gearbox lifespan to 20,000+ hours.

   • Adjustable overflow weir plates: Precisely control product gradation (±2% accuracy).

   • Innovative sealing system: Reduces water consumption by 40% via closed-loop recycling.

Performance Highlights:

• Dewatering effectiveness: Achieves ≤15% moisture content in final products.

• Fine particle retention: Maintains ≤5% loss of 0.15-0.6mm grains during washing.

• Durability: High-chrome alloy blades withstand abrasion from SiO2-rich materials (Mohs 7-8).

Typical Applications:

• Purifying mechanized sand for ready-mix concrete (meeting ASTM C33).

• Recycling quarry tailings with ≤25% clay content.

• Washing river pebbles for landscaping and architectural aggregates.

Operational Advantages:

• Zero foundation requirements: Compact footprint (8m×4m) enables deployment on temporary sites.

• Automated control: PLC system monitors water pressure (0.3-0.5 MPa) and material flow in real time.

• Environmental compliance: Integrated silt traps and water clarifiers meet EPA Tier 4 emission standards.
