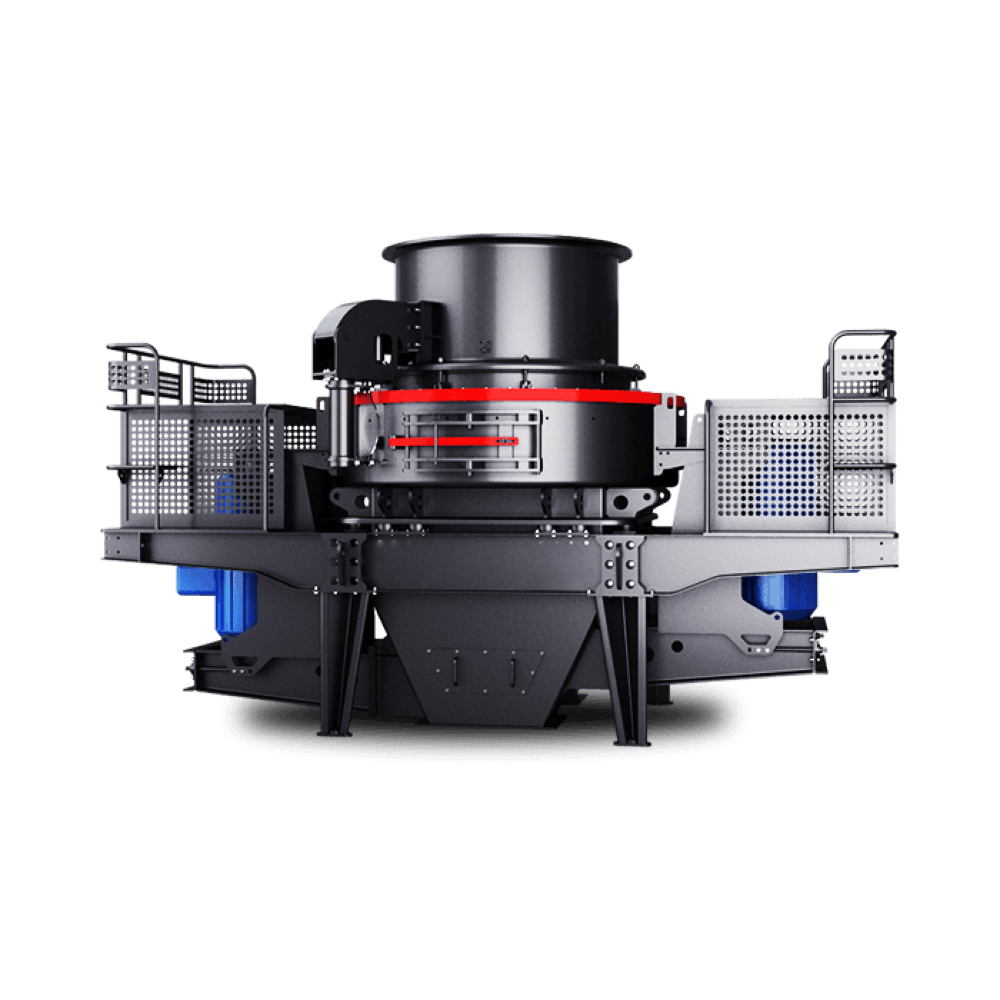

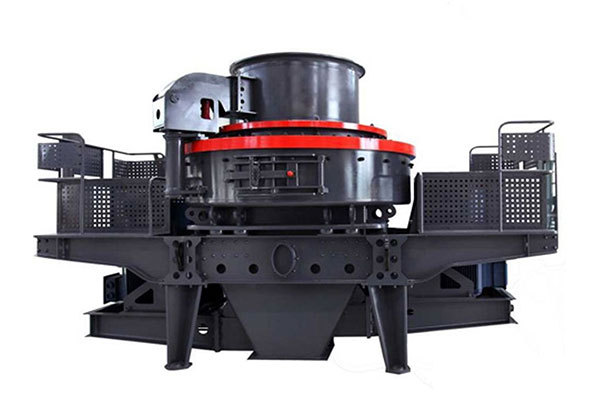

VSI Sand Making Machine, also known as Impact Crusher, is a cutting-edge rock processing equipment developed by our company through integrating practical experience in sand production technology. Engineered to meet international standards, it excels in medium and fine crushing (sand-making) of various hard and brittle materials, including:
Rocks and abrasives
Refractory materials
Cement clinker
Quartzite
Iron ore
Concrete aggregates
Optimized Applications:
Production of high-quality construction sand
Ideal for road-building aggregates
| Model | Maximum Feed（mm） | Power（kw） |
Impeller Speed （r/min） |
Processing Capacity（t/h） | Overall Dimensions（mm） |
| YR-06 | 35 | 37-55 | 2000-3000 | 12-30 | 2500X1620X2600 |
| YR-07 | 45 | 55-75 | 1500-2500 | 25-55 | 2700X1760X2800 |
| YR-09 | 50 | 100-150 | 1200-2000 | 55-100 | 3900X2000X3070 |
