Key Features:
Multi-functional Separation:
Simultaneously removes silt (≤0.075mm), clay impurities, and excess moisture (≤15% residual).
Processes slurry densities up to 1.8 t/m³ with solid content ≤30%.
High-Efficiency Recovery:
Hydrocyclone + Vibrating Screen design achieves ≤5% fine sand loss (vs. 15-25% in traditional methods).
Adjustable overflow weir controls gradation (±2% accuracy for 0.1-0.3mm target sizes).
Robust Engineering:
Corrosion-resistant polyurethane components withstand pH 3-11 slurries.
Closed-loop water recycling reduces consumption by 40-60% (30-50 m³/h vs. 80-120 m³/h).
Technical Specifications:
Feed Capacity: 50-300 m³/h
Power: 7.5-45 kW (variable frequency drive)
Recovery Rate: 85-95% (material-dependent)
Moisture Content: ≤15% (post-dewatering)
Industry Applications:
Sand Plants: Reclaim fines from wastewater (0.15-0.6mm).
Mineral Processing: Recover valuable tailings (e.g., silica, iron ore).
Tunneling: Treat slurry from TBM operations (solid-liquid separation).

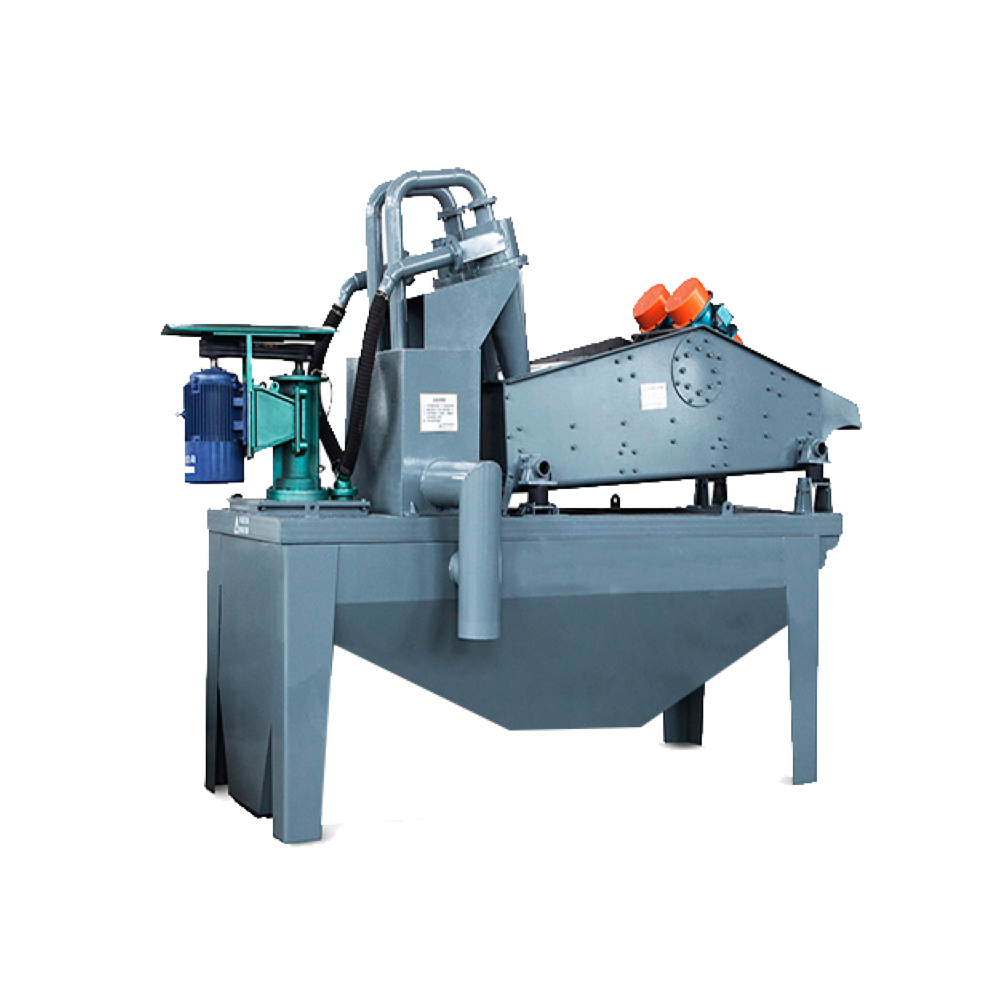

System Components:
Hydrocyclone Cluster: Separates fines via centrifugal force (0.3-0.5 MPa feed pressure).
High-Frequency Dewatering Screen: Reduces moisture via 5-7G vibration intensity.
Slurry Pump Station: Delivers 80-200 m³/h flow with wear-resistant impellers.
Operational Advantages:
Zero Discharge Compliance: Meets EPA/ISO 14001 environmental standards.
Modular Design: Integrates with existing sand washing plants in ≤4 hours.
AI-Powered Control: Auto-adjusts parameters based on feed density (IoT-enabled).
| model | Screen Area（m²） | Feed Size（mm） | Throughput（m²/h） | Power（kw） | Gross Weight（t） | Overall Dimensions（mm） | |
| RY0820 | 1.5 | ≤10 | 5-10 | 0.75*2 | 0.8 | 2220*1140*1140 | |
| RY1020 | 2 | ≤10 | 20-30 | 1.5*2 | 1.6 | 2220*1340*1190 | |
| RY1225 | 3 | ≤10 | 50-80 | 2.2*2 | 2.1 | 2820*1570*1370 | |
| RY1530 | 4.5 | ≤10 | 100-120 | 3*2 | 3.2 | 3320*1830*1350 | |
| RY1840 | 7.2 | ≤10 | 150-200 | 3.7*2 | 4 | 4100*2441*1980 | |
| RY1845 | 8.1 | ≤10 | 150-200 | 3.7*2 | 4.5 | 4600*2441*1980 |
