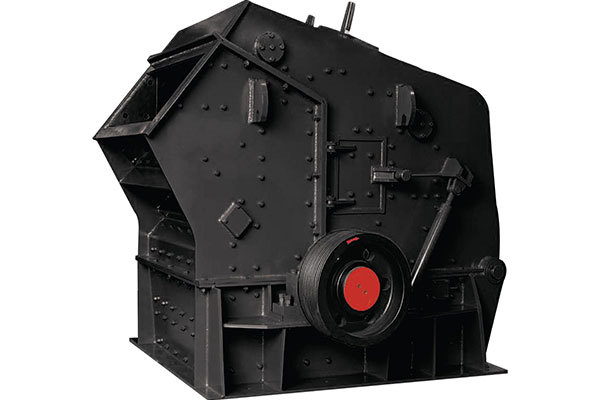

Our next-generation impact crusher deeply integrates advanced crushing technologies. Through precision-engineered rotor and crushing chamber designs, it achieves remarkable improvements in both performance and processing capacity. The core components extensively utilize new wear-resistant materials, delivering exceptional durability that surpasses industry standards while significantly reducing your operating and maintenance costs.
Specifically designed for medium-hardness, low-abrasiveness materials, this crusher serves as the ideal crushing solution for quarries, cement production, concrete and asphalt recycling, and slag utilization - providing efficient, stable, and sustainable production power for global enterprises.
Core Advantages for Outstanding Performance:
Performance Breakthrough: Optimized rotor and crushing chamber designs deliver higher crushing efficiency and greater throughput.
Extended Service Life: Critical components built with high wear-resistant materials ensure long-term, stable operation.
Wide Applicability: Capably handles various medium-to-low abrasiveness materials across multiple industries.
1. Optimized Rotor and Chamber Design
The rotor and crushing chamber are precision-engineered with scientifically calibrated speed and power matching, enabling flexible adaptation to various working conditions including primary crushing, secondary crushing, and material recovery.
2. Heavy-Duty Rotor Structure
Constructed with a heavy-duty rotor and high-quality welding technology, the machine delivers strong impact resistance, significantly improved processing capacity and crushing ratio, and ensures stable and reliable crushing performance.
3. Boat-Shaped Hammer and Locking Mechanism
Equipped with boat-shaped hammers and a secure locking structure, it offers excellent impact and wear resistance while effectively maintaining uniform and stable discharge granularity.
4. Extensive Use of High-Wear-Resistant Materials
Key components extensively utilize new high-wear-resistant materials, significantly reducing wear, extending replacement cycles, and lowering operating and maintenance costs.
5. Hydraulic-Assisted Operation System
Features a hydraulic opening system and hydraulic-assisted adjustment for the gap between the impact plate and hammer, enabling convenient operation, reducing manual effort, and minimizing downtime.
6. Multiple Safety Locking Devices
The equipment is equipped with multiple safety locking mechanisms, enhancing operational safety while further reducing the need for manual intervention.
| Model | Rotor Specifications（mm） | Feed Opening Size（mm） | Feed Size（mm） | Processing Capacity（t/h） | Power （kw） |
| YR1007 | ∅1000x700 | 590x740 | ≤120 | 37-45 | 55-75 |
| YR1010 | ∅1000x1050 | 590x1040 | ≤150 | 50-90 | 75-90 |
| YR1214 | ∅1250x1400 | 755x1440 | ≤190 | 70-180 | 132-160 |
| YR1315 | ∅1320x1500 | 855x1600 | ≤210 | 90-250 | 180-220 |
| YR1620 | ∅1600x2000 | 1600x2080 | ≤600 | 350-400 | 560-630 |
