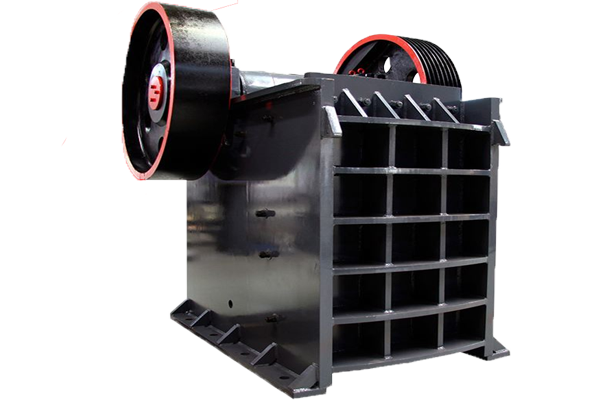

Name: Jaw Crusher
Brand: MY SHOP

Description

1. Yurui jaw crushers utilize advanced manufacturing processes and are constructed with premium-grade materials.
2. Yurui jaw crushers feature an optimized moving jaw assembly for enhanced durability. The assembly is fabricated from high-quality cast steel components and driven by two large cast steel flywheels. The heavy-duty eccentric shaft, precision-machined from forged billets, ensures exceptional operational reliability.
3. The integral cast steel bearing housing guarantees perfect alignment with the crusher frame and significantly improves radial rigidity, a critical advantage over split-type bearing housings.
4. Finite element analysis (FEA) technology is employed to reinforce structural integrity, enabling higher operational strength and improved production efficiency.
5. The symmetrical V-shaped crushing chamber design ensures alignment between the actual feed opening width and nominal feed opening width.
6. Faster discharge adjustment: Equipped with a wedge-type discharge adjustment system, Yurui crushers enable simpler, safer, and more efficient adjustments compared to traditional shim-based methods.
7. Superior bearing performance: Yurui jaw crushers incorporate larger eccentric shaft bearings with higher load capacities than conventional models in the same class. Enhanced durability is achieved through optimized bearing sealing and advanced lubrication.
8. Serrated guard plates are adopted to extend the effective length of jaw plates, significantly increasing throughput capacity.

Model	Feed Opening Size（mm）	feed size（mm）	Discharge Opening Adjustment Range（mm）	Crushing Capacity（t/h）	RPM（r/min）	Rated Power （kw）	Weight （t）	Overall Dimensions（mm）
YR-PE400×600	400×600	≤340	40-100	16-60	275	6P-30	7	173017301630
YR-PE500×750	500×750	≤420	50-100	40-110	275	6P-55	12	198020801870
YR-PE600×900	600×900	≤500	65-160	50-180	250	6P-55	17	219022062300
YR-PE750×1060	750×1060	≤630	80-140	110-360	250	8P-110	19	266024302800
YR-PE900×1200	900×1200	≤750	95-165	220-450	200	8P-110	52	338028703330
YR-PE1000×1200	1000×1200	≤850	195-265	315-500	200	8P-110	55	348028763330
YR-PE1200×1500	1200×1500	≤1020	150-350	400-800	180	6P-160-220	100.9	420033003500
YRX-PE250×1000	250×1000	≤210	25-60	16-52	330	6P-30	7	156015901390
YRX-PE250×1200	250×1200	≤210	25-60	20-61	330	6P-37	9.7	214016601500
YRX-PE300×1300	300×1300	≤250	20-90	16-105	300	6P-55	15.6	272019501600
