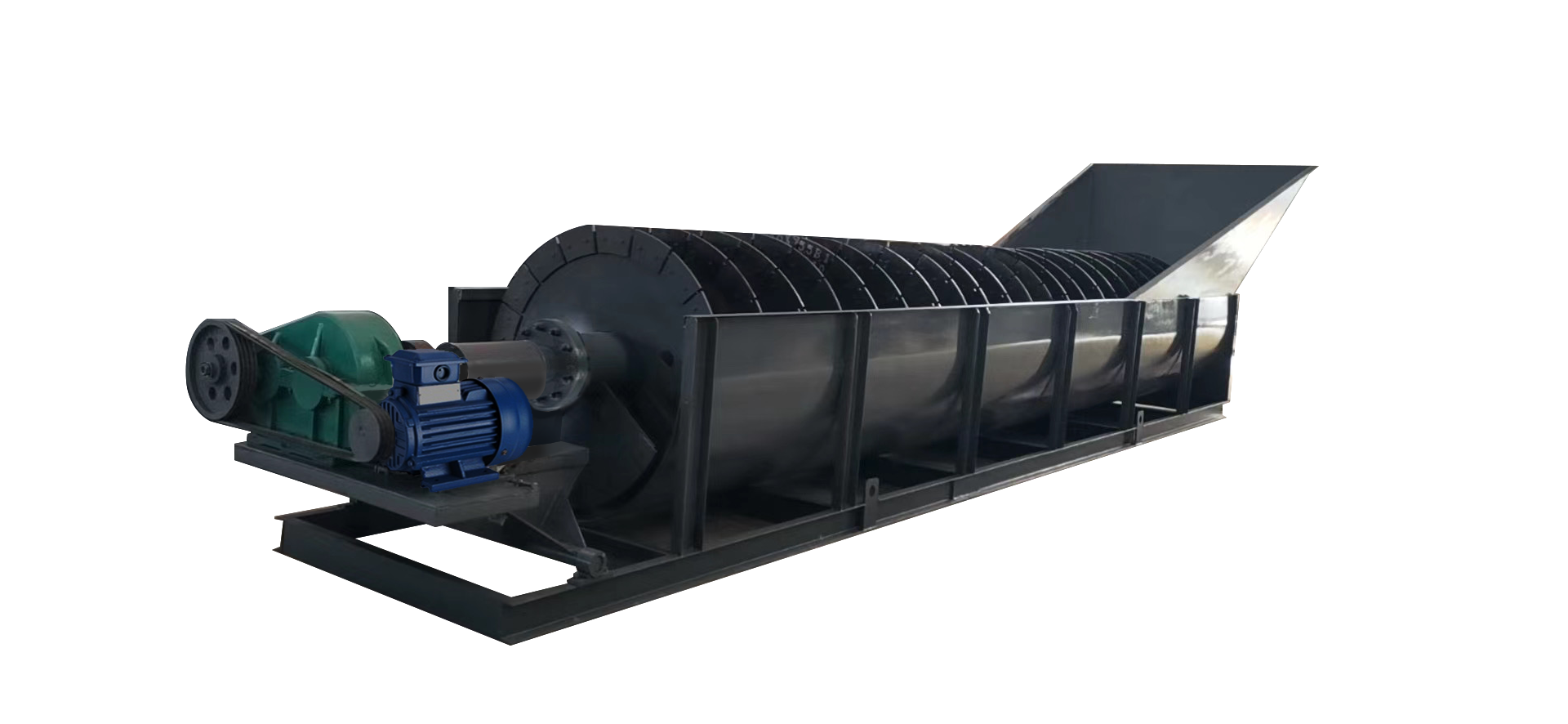

Our Screw Sand Washer is a cornerstone of our product line, engineered for effective sand and gravel cleaning. It utilizes powerful spiral agitation and water flushing to efficiently remove clay, fine powder, and impurities from sand, significantly upgrading material quality. Renowned for its high capacity, excellent cleaning efficiency, and reliable performance, it is the ideal solution for sand plants, ready-mix concrete plants, and major construction projects.
Key Benefits:
Thorough Cleaning: Unique spiral design combines hydraulic scouring and mechanical agitation for deep cleaning.
Robust Construction: Key components feature wear-resistant liners for extended service life.
Multi-Functional: Integrates washing, dewatering, and partial grading in one compact unit.
Reliable Operation: Ensures stable performance with minimal downtime for continuous production.
Primary Applications:
Ideal for washing natural sand and manufactured sand, as well as for cleaning and dewatering aggregates in mining, construction, infrastructure, and hydro-power projects.
| Model | Screw Diameter（mm） | Tank Length（mm） | Feed Size（mm） | Screw Speed （r/min） | Capacity（t/h） | Power（kw） | Water Consumption（t/h） |
| XL515 | 515 | 7615 | ≤10 | 38 | 5-15 | 5.5 | 6-60 |
| XL765 | 765 | 7620 | ≤10 | 26 | 20-60 | 11 | 9-63 |
| XL920 | 920 | 7585 | ≤10 | 21 | 40-110 | 11 | 10-80 |
| 2XL920 | 920 | 7585 | ≤10 | 21 | 80-220 | 2x11 | 20-160 |
| XL1120 | 1120 | 9750 | ≤10 | 17 | 50-130 | 18.5 | 20-150 |
| 2XL1120 | 1120 | 9750 | ≤10 | 17 | 100-260 | 2x18.5 | 40-300 |
