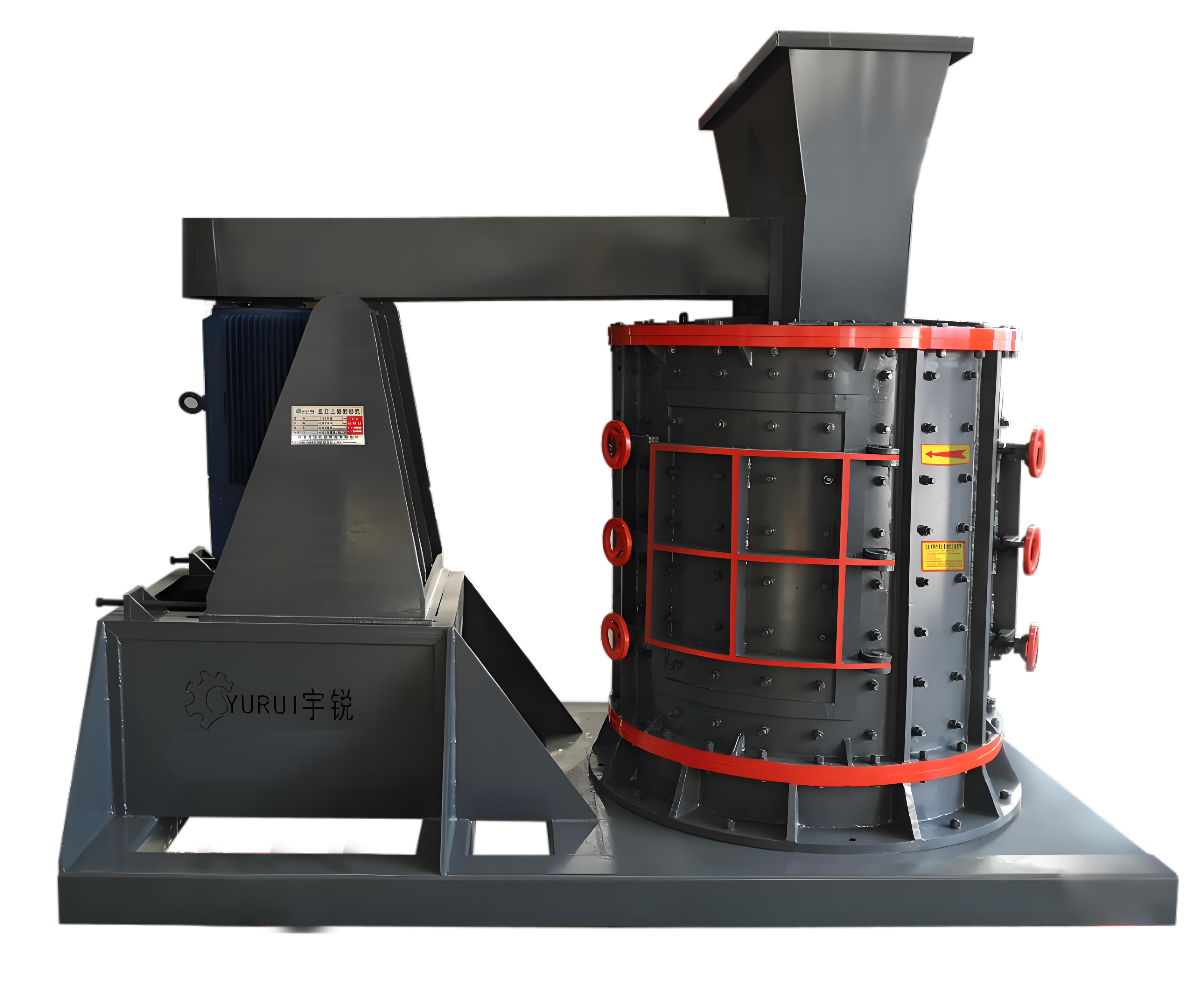

Vertical Compound Crusher

Product Advantages

1. High Crushing Ratio & Clogging Resistance: The Vertical Compound Crusher delivers excellent size reduction without screen deck requirements. It maintains uninterrupted operation even with high-moisture or clay-rich materials.

2. Horizontal Bearing Layout: Engineered for extended service life, the crusher handles high-temperature materials (e.g., cement clinker) with precision-machined heat-resistant bearings.

3. Automatic Jamming Protection: An elastic adjustment mechanism ejects uncrushable objects instantly, preventing equipment damage and downtime.

4. Wear-Resistant Rotor & Maintenance-Friendly Design:

   • Unique rotor structure minimizes wear during operation.

   • Rear chamber hydraulic/power screw opening system enables quick replacement of wear parts without disassembling the main unit.

5. Advanced Wear Parts:

   • Multi-alloy hammer heads and impact plates (2-3x longer lifespan) with adjustable gaps accommodate diverse material crushing requirements.

Working Principle
Bulk ore enters the upper crushing chamber via the feed hopper and lands on the rotating distributor plate. Centrifugal force propels material against the chamber's impact liners, inducing fragmentation or micro-cracks through high-velocity collisions.

The material then flows into the tapered rotor cavity, descending spirally under combined impact, compression, and shear forces. The conical geometry of the rotor and liners creates automatic size classification – larger particles undergo repeated crushing, while smaller fragments migrate downward for discharge.

Multi-stage fragmentation is achieved through:

• Hammer head strikes in the tapered chamber.

• Secondary collisions between particles and impact liners.

• Inter-particle grinding under extreme pressure.

This layered crushing mechanism ensures optimal energy utilization and superior particle shape for high-value aggregates.
